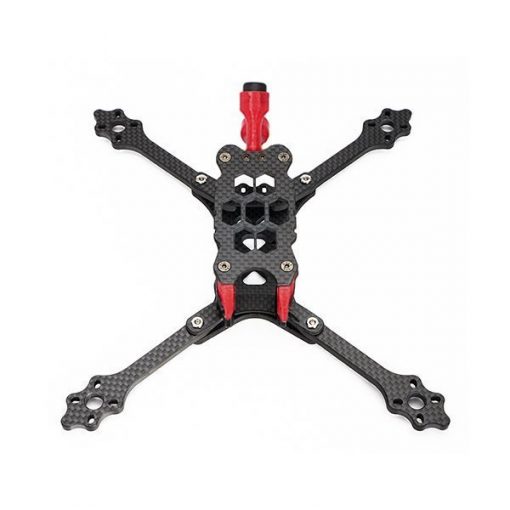

TransTEC RED HD Laser Frame for DJI Digital FPV System

Transtec Laser HD is designed for the DJI Digital FPV system. It is also suitable for a propulsion system with 5-inch propellers and flight controller. The large interior design of the HD Laser simplifies installation and maintenance. With the 5-inch propulsion system, a high speed flying experience is guaranteed. Soft TPU material helps protect camera and antenna in case of crash.

Features

Fully 3k carbon fiber uniformly lightweight, durable, conformable and safe.

Carbon fibre processing: Full bevelled edge.

Bottom plate: Stretch type, 4 mm thick for maximum rigidity.

Top plate: 2.5 mm thick, suitable for DJI Digital FPV, honeycomb design to protect the transmission system from crashes and for lightness.

Side plate: 2 mm thick to ensure stability of the arms.

7075Alu Standoff: Unique Transtec custom aeronautical design for solid, non-bending reinforcement.

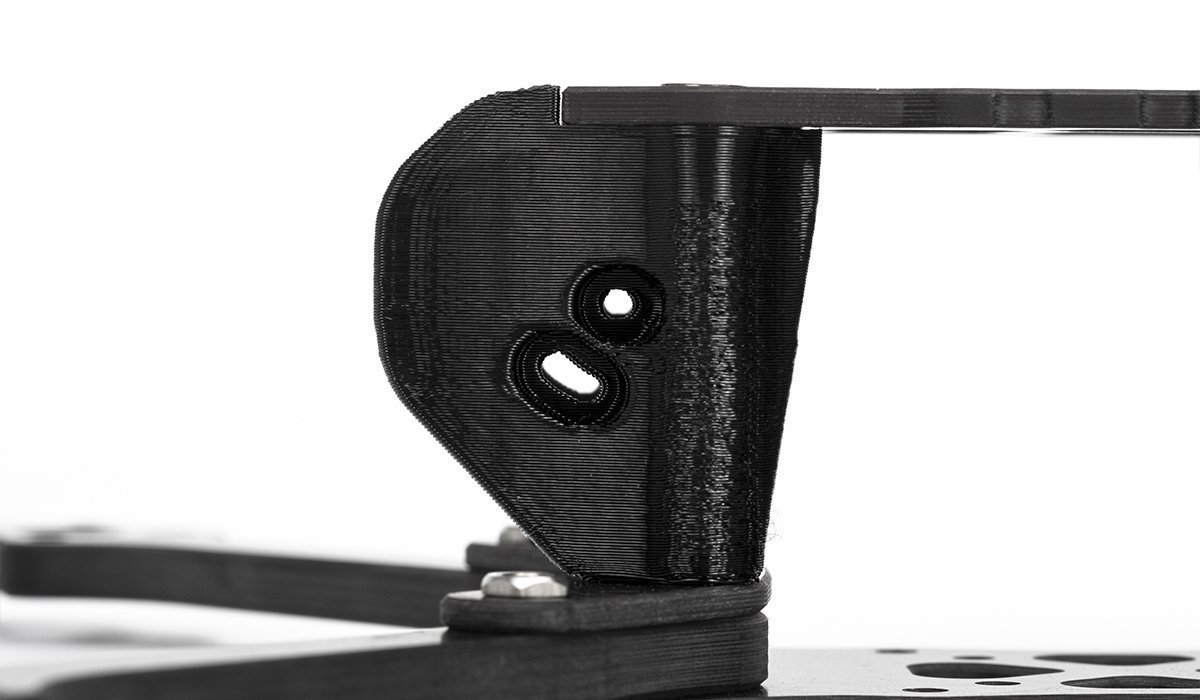

TPU camera support: High precision 3d mold, Black or Red color with unique design to protect the camera.

Antenna angle: Optimized angle for better reception.

Customized pressed connections: 304 stainless steel for a stable frame.

12.9 Screws: First class screws to secure the entire frame.

Large internal HD frame: Allows easy installation and maintenance.

FC mounting holes: 20×20 mm and 30×30 mm, facilitate space for FC and ESC. Specifications: Main material: carbon fiber, TPU, aluminum and other metal.

Weight: 90g

Frame size: 220mm

Compatibility: DJI Digital FPV System, 1000mah LIPO Battery – 1800mah, 4s-6s

Specifications

• Product: TransTEC Laser HD frame For DJI
• Wheelbase: 220mm
• Weight: Stretch X 90g
• Body: separate body
• Arm thickness: 5mm (9mm wide)
• Plate thickness inf: 4mm
• Sup plate thickness: 2mm
• Standoff: 7075 aluminum alloy
• Standoff Color: Titanium color 7075Alu
• Screws: 12.9 first class screws
